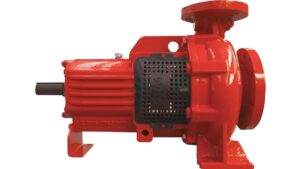

Wilo End Suction Fire Pump – Fire Fighting Pump

The Wilo End Suction Fire Pump is a single-stage end suction pump on a welded steel base frame, built for fire-fighting duty.

Key features

Up to 750 m³/h flow and 170 m head
Fluid temperature −20 °C to +120 °C; nominal diameter DN 150 to DN 400
4- and 6-pole motors, IE3 as standard up to 1000 kW (IE4 on request)
Tolerant coupling and motor adjusting device for simpler alignment
Quiet-running hydraulics and optimised NPSH values to reduce cavitation
Mechanical seal or stuffing box; supplied as a complete unit, without motor, or as pump hydraulics only

Applications

Fire fighting.

Genuine Wilo pumps, sourced direct from the manufacturer, with technical support from Win Win.
