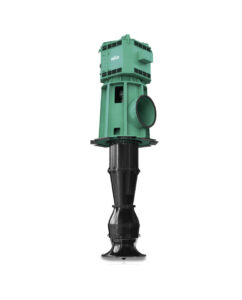

VERTICAL TURBINE PUMP

Range:

Flow upto: 50000 m /hr
Head upto: 450 m
Temperature: up to 80°C
Delivery Size: DN 100 – DN 2000

Product / design features

Vertical wet pit
Stages: Single / multistage
Closed impeller
Above or below floor discharge
Pumped medium lubricated line shaft
bearings
Non pull out bowl/ rotating element
Antifriction bearings

Optional features

Caission/ cannister construction
Tilted pad thrust bearings with cooling
arrangement, semi-open impellers
Oil/ external water lubricated line shaft
bearings
Pull out rotating element, instrumentation
& controls

Material of construction

Cast Iron, Bronze, Ductile Iron, Mild Steel,
Cast Steel, Ni Resist, Stainless Steel,
Duplex Stainless Steel & special alloys

Applications

Water supply/ irrigation
Cooling water for power plant
Flood control/ condensate extraction
general industry/ fire fighting

Prime movers

Electric motors
Diesel engines via right angle gear box
Steam turbine via right angle gear box
