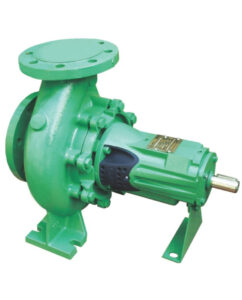

Wilo Atmos GIGA-N Norm Pump as per EN 733
Range

Flow upto: 600 m³/hr
Head upto: 150 m
Temperature: up to 140°C
Delivery Size: DN 32 – DN 150

Product / design features

End suction top discharge
Mounting: Horizontal
Stage: Single
Back pullout design
Closed impeller
Mechanical seal/ gland packing
Grease lubricated antifriction bearings
Spacer coupling as standard; 16 bar max operating pressure; cataphoretic coating.

Material of construction

Casing – Cast Iron
Impeller – Cast Iron / Bronze

Applications

Building service
Sprinkler systems
Water supply
General industry

Prime movers

Electric motors
