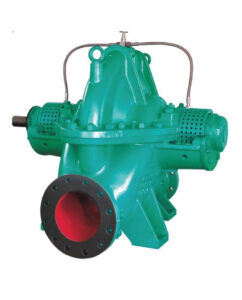

STANDARD HORIZONTAL SPLIT CASE PUMP

Range

Flow upto:3 400 m /hr
Head upto: 235 m
Temperature:up to 120°C
Delivery Size: DN 50- DN 400

Product / design features

Mounting: Inline horizontal
Stages : Single/ double
single/ double suction impellers shaft with sleeves
Grease lubricated antifriction bearing
Mechanical seal/ gland packing

Optional features

Mounting: Vertical

Material of construction

Casing – Cast Iron Impeller – Cast Iron / Bronze/ SS (CF8M)

Applications

Water supply / general industry
Building service / fire fighting
Spray irrigation / district heating

Prime movers

Electric motors
Diesel engines
